基于HTML5的云虚拟主机界面

2014-06-19

云计算大行其道,底层的虚拟化技术,上面的云存储和应用API,耳濡目染,也受益匪浅,算是大势所趋,回头看看Qunee组件,借这个趋势,可以在云计算可视化上发挥作用,最近就有客户用Qunee实现VPC配置图,并对交互做了定制,细节不便多说,本文主要介绍Qunee交互扩展方面的思路 VPC配置图

参考示例 - visualops

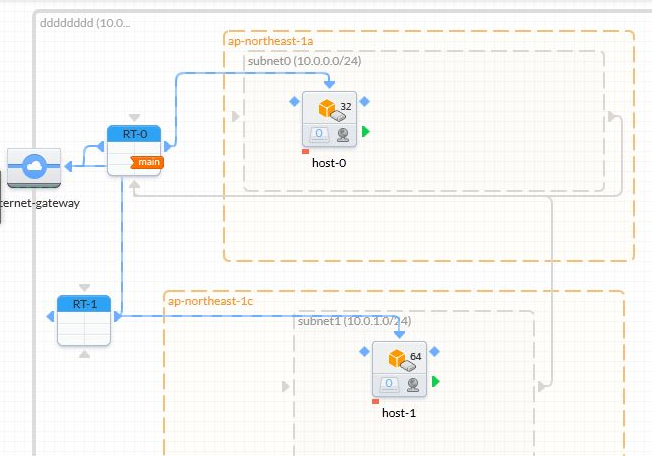

云平台可视化这块儿国外做的不错,有不少开放的示例可以学习和参考,客户看中了这家云管理系统http://www.visualops.io/ ,这个系统使用的是SVG技术,体验了一下,效果不错 visualops

分析与实现

原型设计

从界面上看,一个云节点上有多个子网,每个子网内有多台虚拟主机,然后每个云节点有统一的路由Router管理(或者网关Gateway)

界面呈现

参照原型实现,使用Q.Path描出子网和云节点范围,虚拟机则用普通节点,连线使用正交连线类型,此外还有些外观配置,比如虚线,背景颜色,网格等,设置style或者css即可

创建矩形元素(子网、云节点)

function createRect(name, left, top, width, height, fillColor) {
    var rect = graph.createNode(name, left, top);
    rect.type = "rectGroup";
    rect.anchorPosition = Q.Position.LEFT_TOP;
    rect.image = Q.Shapes.getRect(0, 0, 100, 100);
    rect.size = {width: width, height: height};
    rect.setStyle(Q.Styles.IMAGE_BACKGROUND_COLOR, fillColor || Q.toColor(0x88FFFFFF));
    rect.setStyle(Q.Styles.SHAPE_STROKE, 0);
    rect.setStyle(Q.Styles.BORDER, 1);
    rect.setStyle(Q.Styles.BORDER_COLOR, "#32c02f");
    rect.setStyle(Q.Styles.BORDER_LINE_DASH, [5, 6]);
    rect.setStyle(Q.Styles.LABEL_PADDING, 5);
    rect.setStyle(Q.Styles.LABEL_ANCHOR_POSITION, Q.Position.LEFT_TOP);
    rect.setStyle(Q.Styles.LABEL_POSITION, Q.Position.LEFT_TOP);
    rect.setBounds = function (bounds) {
        this.x = bounds.x;
        this.y = bounds.y;
        this.size = new Q.Size(bounds.width, bounds.height);
    }
    rect.getBounds = function () {
        return new Q.Rect(this.x, this.y, this.size.width, this.size.height);
    }
    rect.inBounds = function (x, y) {
        return this.getBounds().contains(x, y);
    }
    rect.intersectsRect = function (rect) {
        return rect.intersectsRect(this.x, this.y, this.size.width, this.size.height);
    }
    rect.containsRect = function (rect) {
        return Q.containsRect(this.x, this.y, this.size.width, this.size.height, rect.x, rect.y, rect.width, rect.height);
    }
    rect.updateBoundsByChildren = function () {
        var bounds = new Q.Rect();
        Q.forEachChild(this, function (child) {
            bounds.add(graph.getUIBounds(child));
        });
        this.location = new Q.Point(bounds.x, bounds.y - 15);
        this.size = new Q.Size(Math.max(200, bounds.width), Math.max(70, bounds.height + 15));
    }
    return rect;
}

注意到对Rect增加了一些标定节点范围、计算自身大小的方法,后面交互时会用到

创建虚拟主机

function createPC(name, x, y, parent) {
    var node = graph.createNode(name, x, y);
    node.image = Q.Graphs.server;
    node.parent = node.host = parent;
    node.zIndex = 10;
    return node;
}

创建连接关系

function createEdge(from, to) {
    var name = from.name + "->" + to.name;
    var edge = graph.createEdge(name, from, to);
    edge.edgeType = Q.Consts.EDGE_TYPE_VERTICAL_HORIZONTAL;
    edge.setStyle(Q.Styles.EDGE_FROM_OFFSET, {x: 20});
    edge.setStyle(Q.Styles.EDGE_CORNER_RADIUS, 0);
    return edge;
}

定制交互

呈现出来不难,业务的体现在于交互,客户需求要求虚拟主机不得超出云节点范围,超出时需要回撤操作,此外可以将一台虚拟机从一个子网移到另一个子网,另外还要控制路由的移动范围,限定在云节点的左边框上…… 实现思路是通过交互监听,分别对移动(ELEMENT_MOVING),调整大小(RESIZING)等情况做处理,Qunee交互事件通常有三个状态:开始、进行时、结束,比如移动交互的三个过程:开始移动(ELEMENT_MOVE_START),移动中(ELEMENT_MOVING),完成移动(ELEMENT_MOVE_END),我们可以在开始时记录节点原始位置,结束时判断节点位置是否允许,如果不允许则作调整

var oldLocation = {};
graph.interactionDispatcher.addListener(function (evt) {
    var data = evt.data;
    if (evt.kind == Q.InteractionEvent.RESIZE_START) {
        oldLocation[data.id] = {x: data.x, y: data.y, width: data.size.width, height: data.size.height};
    }
    if (evt.kind == Q.InteractionEvent.RESIZING) {
        if (data == mainNode) {
            label.updateLocation();
        }
        return;
    }
    if (evt.kind == Q.InteractionEvent.RESIZE_END) {
        var oldBounds = oldLocation[data.id];
        oldLocation = {};
        if ((data != mainNode && isGroup(data) && groupIntersected(data)) || childrenOutParent(data)) {
            data.setBounds(oldBounds);
        }
        if (data == mainNode) {
            label.updateLocation();
        }
        return;
    }
    if (data.atLeft) {
        if (evt.kind == Q.InteractionEvent.ELEMENT_MOVING) {
            data.updateLocation();
        }
        return;
    }
    if (evt.kind == Q.InteractionEvent.ELEMENT_MOVE_START) {
        oldLocation[data.id] = {x: data.x, y: data.y};
        return;
    }
    if (evt.kind == Q.InteractionEvent.ELEMENT_MOVING) {
        if (!isGroup(data)) {
            var g = findGroup(evt.event);
            highlight(g);
        }
        return;
    }
    if (evt.kind == Q.InteractionEvent.ELEMENT_MOVE_END) {
        highlight();
        if (isGroup(data)) {
            if (groupIntersected(data)) {
                var old = oldLocation[data.id];
                graph.moveElements([data], old.x - data.x, old.y - data.y);
            }
            return;
        }
        var g = findGroup(evt.event);
        if (g) {
            data.parent = data.host = g;
            fixNode(data);
        } else {
            data.location = oldLocation[data.id];
        }
        oldLocation = {};
    }
})

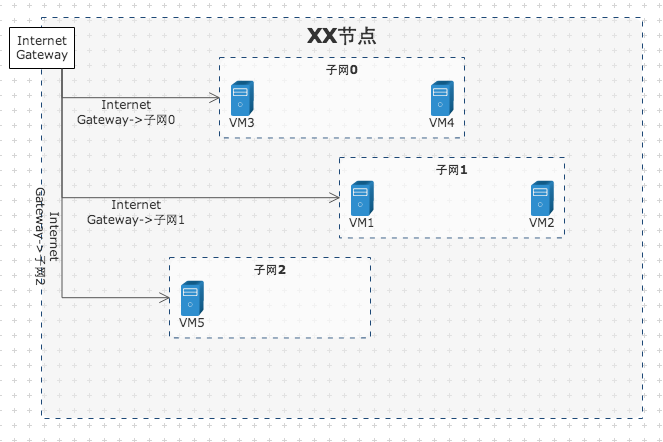

最终效果

VPC配置图

在线演示:[http://demo.qunee.com/#VPC Manager Demo](http://demo.qunee.com/#VPC Manager Demo)
