子网类型

拓扑图可以描述网络结构的分布,一个图就表示一个网络,网络通常具有层级关系,广域网下面有城域网,城域网下面有局域网,这种从属网络我们称为子网(Sub Network)

Qunee中任何图元都可以作为子网,文字,节点,连线,甚至分组,只需要设置enableSubNetwork属性为true,即可表示为子网类型

子网相关API

示例

var graph;
$(function(){
    graph = new Q.Graph('canvas');

var subnetwork = graph.createNode('双击进入子网');
    subnetwork.image = Q.Graphs.subnetwork;
    subnetwork.enableSubNetwork = true;

var hello = graph.createNode("Hello", -100, -50);
    var qunee = graph.createNode("Qunee", 100, 50);
    var edge = graph.createEdge("Hello\nQunee", hello, qunee);

hello.parent = subnetwork;
    qunee.parent = subnetwork;
    edge.parent = subnetwork;

graph.onPropertyChange('currentSubNetwork', function(){
        graph.html.style.backgroundColor = graph.currentSubNetwork == subnetwork ? '#DDF' : '#FFF';
    });
})

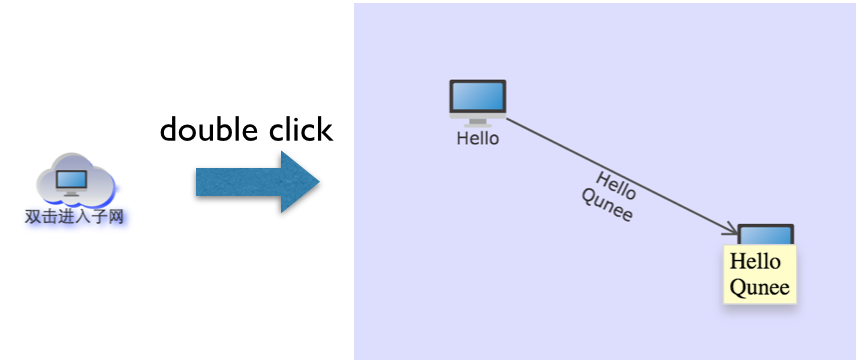

运行效果

ScreenShot 2014-11-20 at 2.03.57 PM.png
